LED Flood Light

LED Flood Light

We take pride in introducing ourselves in the list of reputed LED Flood Light companies & flood lights products. We offer LED Flood lights with special design, high quality components, excellent reliability, long working even under bad weather, low power consumption and low operating cost. Pyrotech provides LED Flood Light in different sizes, wattage and colors like cool white, warm white, neutral white and RGB also these lights are also known as Beam Lights or High Mast Lights. It is also available in 24V AC for confined space application and 110V AC for mines application. 110V/220V DC UPS supply could also be given at the time of power failure. We serve all sectors of professional lighting segment such as Power, Cement, Steel, Glass, Oil & Gas, Chemical, Municipalities, PWD’s etc. We are also making for various reputed lighting companies as OEM and exporting worldwide.

Technical Highlights

  • OSRAM Certified Partner
  • Up to 80% energy saving
  • Aesthetically designed aluminium extruded /die-cast enclosures
  • Optimized heat sink design for excellent thermal management
  • Highly efficient constant current LED drivers
  • Short circuit & open circuit protection on driver
  • IP-65
  • High tensile zinc passivated hardware
  • Epoxy Powder coating

Features

  • LM – 80 Certified
  • THD <10%
  • Long service life of upto 50,000 hrs.
  • Power factor >0.9
  • Surge Protection (>4kV)
  • 440V AC protection for more than 30 minutes
  • Color rendering index (CRI)>80
  • Light angle can be made application specific
  • High quality toughened glass
  • No UV or IR radiation
  • Extremely cost effective operation(>2kV)
  • Green and Environment Protection

Applications

  • Industries & Institutional Campuses
  • Illuminating hoardings illuminating facades
  • Illuminating architectural structures
  • Illumination of Monuments, Churches, Cricket Grounds

LED FLOOD LIGHT

Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 30-45
Input Voltage 24/140-270V AC,110/220V DC
Dimension(mm) 170(Dia)X122(H)
LED Colors CW/WW/NW

LED FLOOD LIGHT

Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 60-90
Input Voltage 140-270V AC, 110/220V DC
Dimension(mm) 195(Dia)X126(H)
LED Colors CW/WW/NW

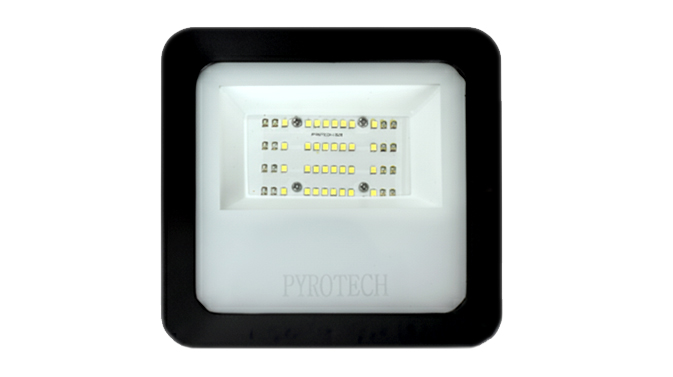

LED FLOOD LIGHT (MINI)

led-flood-lights
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 10-30
Input Voltage 140-270V AC, 110/220V DC
Dimension(mm) 160(L)X155(W)X42(H)
LED Colors CW/WW/NW

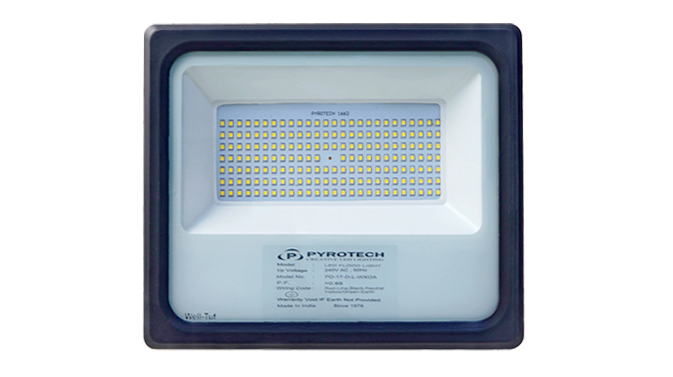

LED FLOOD LIGHT (MINI)

led-flood-lights40-50w
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 40-50
Input Voltage 140-270V AC, 110/220V DC
Dimension(mm) 213(L)X203(W)X46(H)
LED Colors CW/WW/NW

LED FLOOD LIGHT (MINI)

LED Flood Light Mini
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 60-70
Input Voltage 140-270V AC, 110/220V DC /24V AC
Dimension(mm) 235(L)X193(W)X65(H)
LED Colors CW/WW/NW

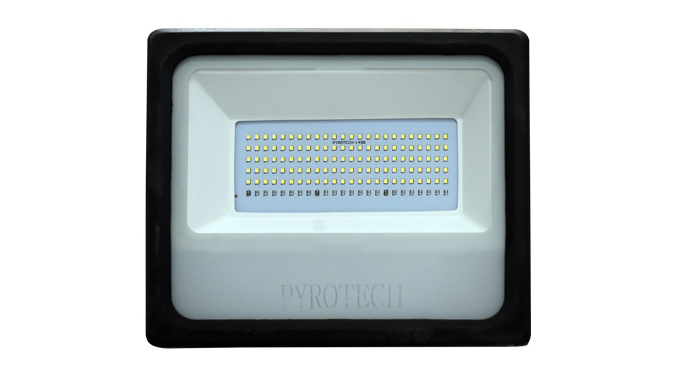

LED FLOOD LIGHT

led-flood-lights-80-120w
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 80-120
Input Voltage 24/140-270V AC,110/220V DC
Dimension(mm) 282(L)X248(W)X50(H)
LED Colors CW/WW/NW

LED FLOOD LIGHT

led-flood-lights-130-160w
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 130-160
Input Voltage 140-270V AC, 110/220V DC
Dimension(mm) 308(L)X286(W)X63(H)
LED Colors CW/WW/NW

LED FLOOD LIGHT

led-flood-lights-180-200w
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 180-200
Input Voltage 140-270V AC, 110/220V DC
Dimension(mm) 335(L)X270(W)X70(H)
LED Colors CW/WW/NW

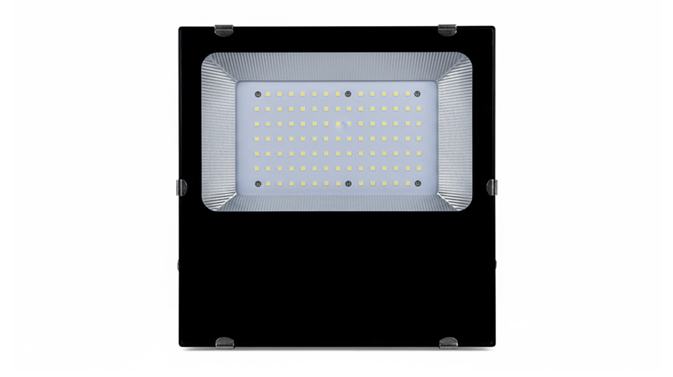

LED FLOOD LIGHT

Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 200-240
Input Voltage 140-270V AC, 110/220V DC / 24V AC
Dimension(mm) 407(L)X302(W)75(H)
LED Colors CW/WW/NW

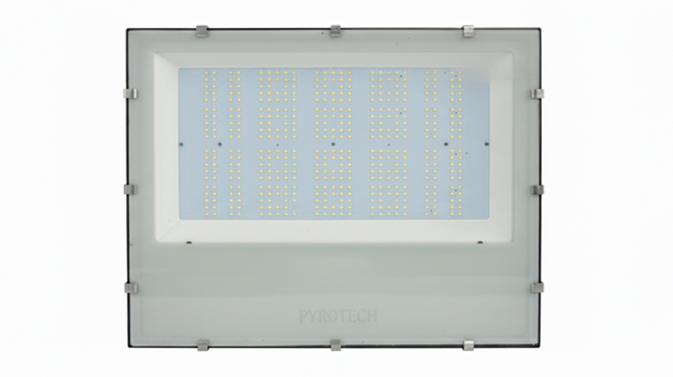

LED FLOOD LIGHT

led-flood-lights-400w
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 250-400
Input Voltage 140-270V AC, 110/220V DC
Dimension(mm) 495(L)X460(W)60(H)
LED Colors CW/WW/NW

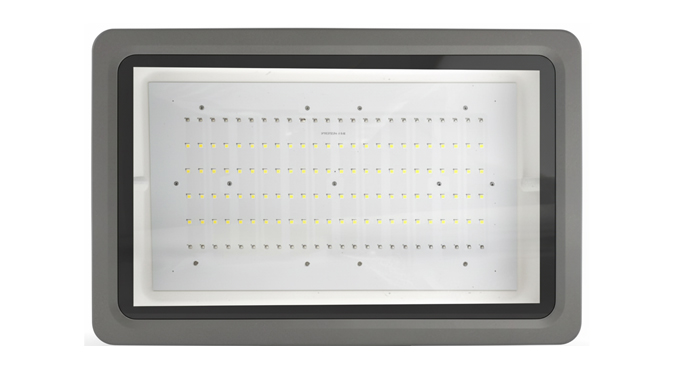

LED FLOOD LIGHT

Flood Light 400 500W
Ordering Code PD-17-D-L-WXOA
Power Consumption (W) 450-500
Input Voltage 140-270V AC, 110/220V DC
Dimension(mm) 600(L)X400(W)175(H)
LED Colors CW/WW/NW
