LED Hand Lamp
LED 24V AC Industrial Hand lamps are used in maintenance/confined space, shut down applications as per industry standards. These lights have to be moved from one location to another location. In this application these lights are recommended to avoid 220V AC so as to prevent electrocution hazard. The applications include maintenance of kiln, mill, boilers furnace etc.
We serve all sectors of professional lighting segment such as Mining industry, Power, Cement, Steel, Glass, Oil & Gas, Chemical, Municipalities, PWD’s etc. We are also making for various reputed lighting companies as OEM and exporting worldwide.
LED handlamps, LED handheld flashlights, and LED handheld torch lights provide portable, efficient, and reliable lighting solutions. Whether you need illumination for work, emergencies, or outdoor adventures, these LED-powered devices offer durability, brightness, and convenience in a compact package.
Technical Highlights
- OSRAM Certified Partner
- Up to 80% energy saving
- Aesthetically designed aluminium extruded /die-cast enclosures
- Optimized heat sink design for excellent thermal management
- Highly efficient constant current LED drivers
- Short circuit & open circuit protection on driver
- IP-40
- High tensile zinc passivated hardware
- Epoxy Powder coating
Features
- LM – 80 Certified
- THD < 20%
- Long service life of upto 50,000 hrs.
- Power factor >0.9
- Surge Protection (>4kV)
- Power efficiency >80%
- Color rendering index (CRI)>65
- Light angle can be made application specific
- High quality toughened glass
- No UV or IR radiation
- Extremely cost effective operation(>2kV)
- Green and Environment Protection
- Retrofit Solutions Available
- Flameproof Enclosure
Applications
- Suitable for illuminating Industrial area for repair & maintenance work

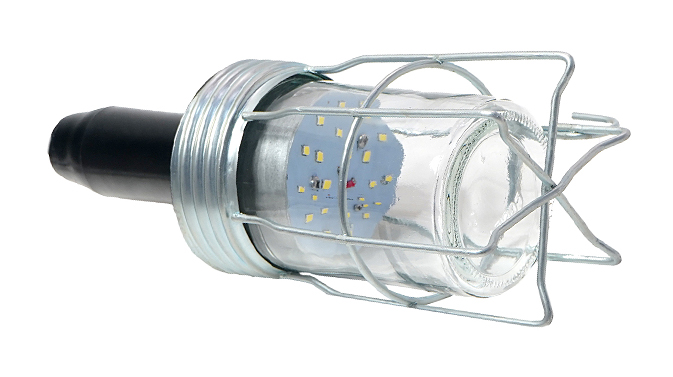

LED GLASS HAND LAMP
Ordering Code | PK-11-P-L-WXOA |
Power Consumption (W) | 7 |
Input Voltage | 24/140-270V AC |
Dimension (mm) | 85(Dia)X255(H) |
LED Colors | CW/WW/NW |
LED GLASS HAND LAMP
Ordering Code | PK-11-P-L-WXOA |
Power Consumption (W) | 20 |
Input Voltage | 24/140-270V AC |
Dimension (mm) | 85(Dia)X255(H) |
LED Colors | CW/WW/NW |

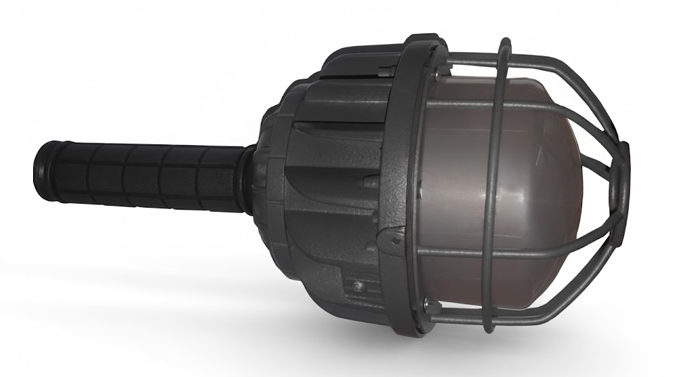

LED ACRYLIC HAND LAMP
Ordering Code | PK-11-P-L-WXOA |
Power Consumption (W) | 12 |
Input Voltage | 24/140-270V AC |
Dimension (mm) | 90(Dia)X230(H) |
LED Colors | CW/WW/NW |

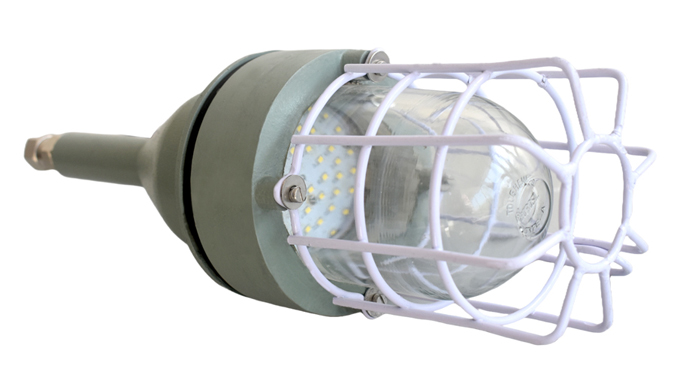

LED FLAMEPROOF HAND LAMP
Ordering Code | PK-11-P-L-WXOA |
Power Consumption (W) | 15/20 |
Input Voltage | 140-270V AC |
Dimension (mm) | 127(Dia)X380(H) |
Frequency Range | 50Hz +/- 10% |
LED Colors | CW/WW/NW |
LED POLYCARBONATE HAND LAMP
Ordering Code | PK-11-P-L-WXOA |
Power Consumption (W) | 40 |
Input Voltage | 140-270V AC |
Dimension (mm) | 150(Dia)X285(H) |
LED Colors | CW/WW/NW |
