LED Hand Lamp
The Pyrotech LED 24V AC Industrial Hand Lamp is a portable, low-voltage LED inspection light designed for industrial maintenance, confined space entry, shutdown operations, and equipment inspection where worker safety is critical. Operating on 24V AC, it significantly reduces the risk of electric shock compared to conventional 220V AC hand lamps, making it ideal for boilers, furnaces, kilns, mills, and metallic work areas. Built with energy-efficient LED technology, this industrial maintenance light delivers high-brightness illumination, long service life, low maintenance, and reliable performance in harsh environments. Widely used across power plants, mining, cement, steel, glass, oil & gas, chemical, and manufacturing industries, Pyrotech also offers OEM solutions and exports high-quality industrial LED hand lamps worldwide.
Technical Highlights
- OSRAM Certified Partner
- Up to 80% energy saving
- Aesthetically designed aluminium extruded /die-cast enclosures
- Optimized heat sink design for excellent thermal management
- Highly efficient constant current LED drivers
- Short circuit & open circuit protection on driver
- IP-40
- High tensile zinc passivated hardware
- Epoxy Powder coating
Features
- LM – 80 Certified
- THD < 20%
- Long service life of upto 50,000 hrs.
- Power factor >0.9
- Surge Protection (>4kV)
- Power efficiency >80%
- Color rendering index (CRI)>65
- Light angle can be made application specific
- High quality toughened glass
- No UV or IR radiation
- Extremely cost effective operation(>2kV)
- Green and Environment Protection
- Retrofit Solutions Available
- Flameproof Enclosure
Applications
- Suitable for illuminating Industrial area for repair & maintenance work

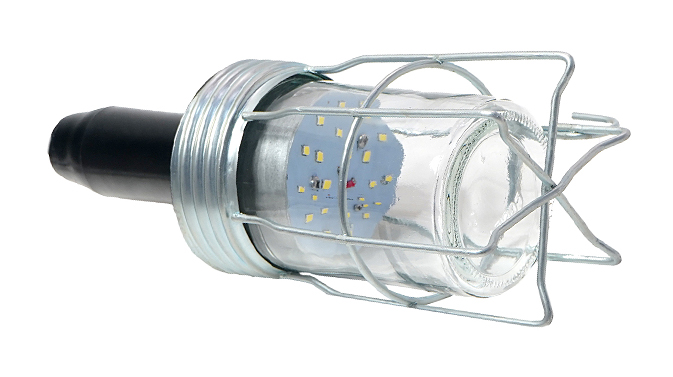

LED GLASS HAND LAMP
| Ordering Code | PK-11-P-L-WXOA |
| Power Consumption (W) | 7-20 |
| Input Voltage | 24/140-270V AC |
| Dimension (mm) | 85(Dia)X255(H) |
| LED Colors | CW/WW/NW |
LED GLASS HAND LAMP
| Ordering Code | PK-11-P-L-WXOA |
| Power Consumption (W) | 20 |
| Input Voltage | 24/140-270V AC |
| Dimension (mm) | 85(Dia)X255(H) |
| LED Colors | CW/WW/NW |
LED ACRYLIC HAND LAMP
| Ordering Code | PK-11-P-L-WXOA |
| Power Consumption (W) | 12 |
| Input Voltage | 24/140-270V AC |
| Dimension (mm) | 90(Dia)X230(H) |
| LED Colors | CW/WW/NW |

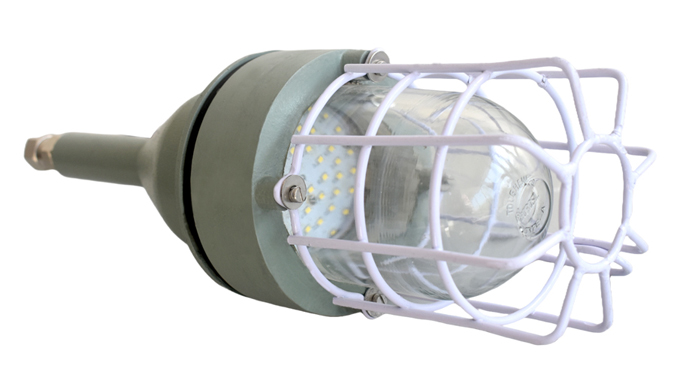

LED FLAMEPROOF HAND LAMP
| Ordering Code | PK-11-E-L-WXOA |
| Power Consumption (W) | 20 |
| Input Voltage | 24/230V AC-24V DC |
| Dimension (mm) | 126(Dia)X374(H) |
| LED Colors | CW/WW/NW |
LED POLYCARBONATE HAND LAMP
| Ordering Code | PK-11-P-L-WXOA |
| Power Consumption (W) | 40 |
| Input Voltage | 140-270V AC |
| Dimension (mm) | 150(Dia)X285(H) |
| LED Colors | CW/WW/NW |
