PIR Occupancy Sensors
Our PIR-based Occupancy Sensors is a fully automatic indoor light controller capable of controlling upto 2000W incandescent or 1000W fluorescent lighting.
Passive infrared (PIR) sensors relate to the movement of objects by detecting their heat and light, but only in their field of view. As these products rely on line of sight their performance is affected when inanimate objects obstruct their field of view.
Technical Highlights
- Activated by Infra Red-Heat and Light
- Do not function well on temperature >40 Degree
- Can not penetrate Plastic or Glass
- Lenses can age due to exposure to the atmosphere, which results in reduced performance over time.
- Life Span of 25,000hours.

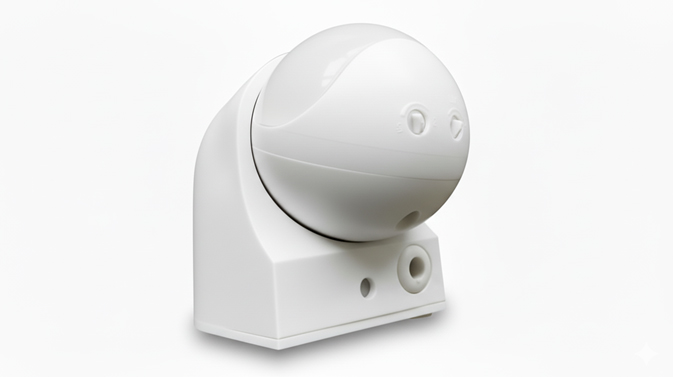

16A Wall Mount PIR Occupancy Sensor
Features
- 180 Degree-Ceiling mount,micro-motion detectable.
- Photosensor inside for smart control.
- Run-on time adjustable.
- Ambient lux, setting adjustable.
- 2000 W / 625 W loading.
- Can Support IR remote Control also for On/ Off / Auto Control.
- Detection range: 6m for micromotion @2.5 height and 12m for a walk across motion @5 height.
- Warm-up time: Approximately 1minute.
- Output: Relay.
- Size: 91(L)x63(W)x87(H) mm.
- With IR Remote.
- Weight: 137gms.
